Roll to Roll Rs measurement system |
 |
NC-700 for Web coater (롤투롤 면저항 측정기) |
 |
- Rs : 0.001∼2,000Ω/sq (*Other ranges are available)
- Applications : ITO ,TCO, metal and other cunductive layer on film, glass, paper
- Sample sizes : Contact us in details |
 |

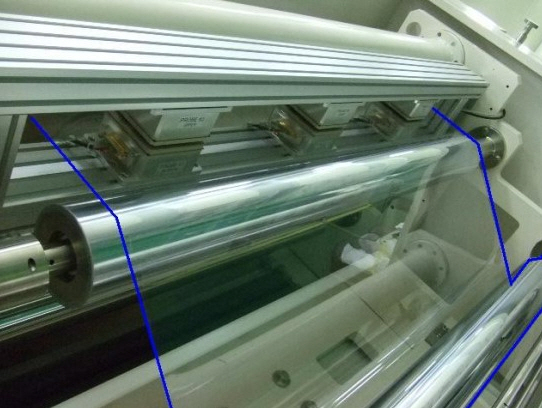

 *The framing part in a blue line is a film
- In-line measurement module for moving substrates such as film, glass or paper
- Continuous measurement in Roll to Roll with off-set free capability (24 hours x 30 days)
- Built-in module that is non-contact eddy current probes [upper and lower positions] for a line of conveyer
- Various applications from the research and development to the production line by selectable numbers of measurement probe
- Vacuum chamber version (NC-700V)
- Transmittance measurement function (NC-700TR)
|
|
 |
|
|
|
